Smarter Cable Stability Starts Here
AuroraCAT combines AOE’s proven offshore engineering methods with a powerful, easy-to-use online tool.
Say hello to AuroraCAT, your new offshore cable stability tool
Smarter Cable Stability Starts Here
AuroraCAT combines AOE’s proven offshore engineering methods with a powerful, easy-to-use online tool.
Say hello to AuroraCAT, your new offshore cable stability tool
Engineering Smarter Cable Stability Solutions
Aurora Offshore Engineering (AOE) brings proven expertise in On-Bottom Stability (OBS) analysis for subsea cables used in offshore wind, interconnectors, tidal energy, and other projects.
From Complex Analysis to Clear Insight
Traditional On-Bottom Stability analysis methods (DNV-RP-F109) were designed for pipelines — not cables.
AOE has built on these standards to create a more accurate approach that reflects real-world cable behaviour, accounting for factors like wave action, seabed mobility, and shallow-water conditions.
Setting New Standards in Cable Stability
Through years of project experience, AOE has utilised STABLEpipe (for mobile seabeds) and COREstab (for rocky seabeds) — innovative methods now referenced in international standards including DNV-RP-F109:2021 and BS 10009.Meet AuroraCAT — Cable Analysis Made Simple
To make these advanced techniques accessible to industry professionals, AOE created AuroraCAT, the Aurora Cable Analysis Tool.
Analyse with Confidence
With just a few inputs — cable specifications, metocean data, and seabed type — users can quickly run:- Standard DNV-RP-F109 Absolute & Generalised stability analysis
- Enhanced AOE AbStab (includes wave breaking, high KC number and boundary layer effects)
- STABLEpipe for mobile seabeds
- COREstab for rocky seabeds
Early Insights for Better Design Decisions
AuroraCAT gives engineers and project teams the ability to perform reliable preliminary stability checks before detailed OBS analysis — helping to save time, reduce uncertainty, and improve design efficiency.Available at
auroracat.app
Introduction, Background
and User Instructions
Aurora Cable Analysis Tool: AuroraCAT
When
Early cable route design – up to FEED stage
Function
Indicative Stability Check for a given cross section under given environmental conditions.
Output
Horizontal Utilisation Factor = Ratio between Load and Resistance.
When UF≤1, the cable successfully passes a stability check.

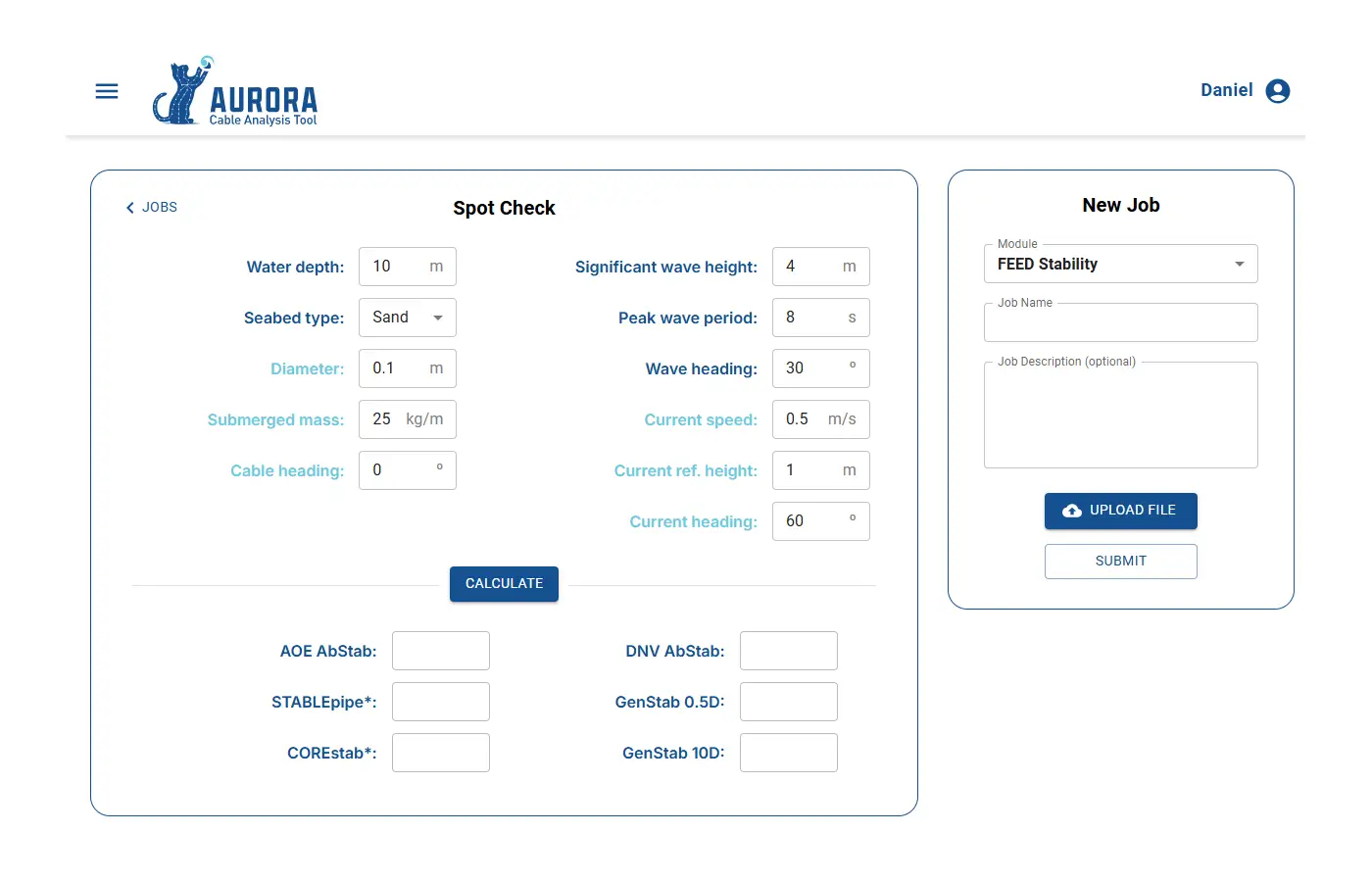

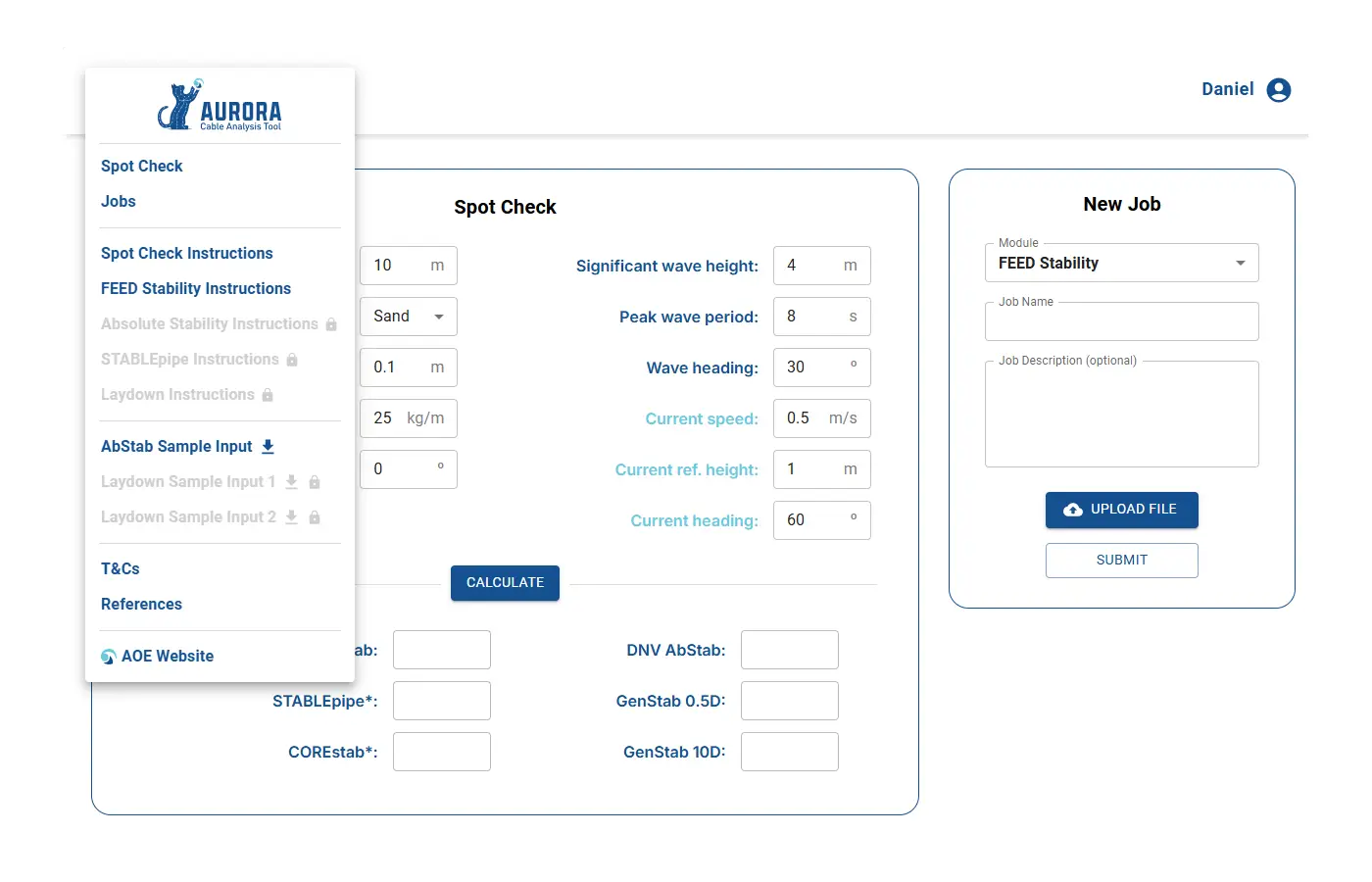

Using AuroraCAT Spot/Case Check
AuroraCAT Analysis
Stability Outcomes
AOE Absolute Stability
Aurora Offshore Engineering (AOE) improved hydrodynamics implemented on AbStab checks as per DNV-RP-F109
Pipelines ≠ Cables
Loads calculated for Keulegan-Carpenter Numbers (KC) > 140
Boundary Layer (BL) effects calculated for cables
Breaking waves, incorporating Fenton’s high order breaking wave models
Calculation Method
AOE Absolute Stability
Basic Analysis of Load vs Resistance
Aurora’s experience with more developed methods
STABLEpipe FEED
Sandy and Silty seabed
COREstab FEED
Rough Rocky seabed
Sediment transport
Scour
Reduction & friction factors
Comprehensive Design Services
Outcomes of AuroraCAT.app can help guide initial design decisions.
For more comprehensive design services contact AOE at: info@aurora-oe.com
Instructions for first use

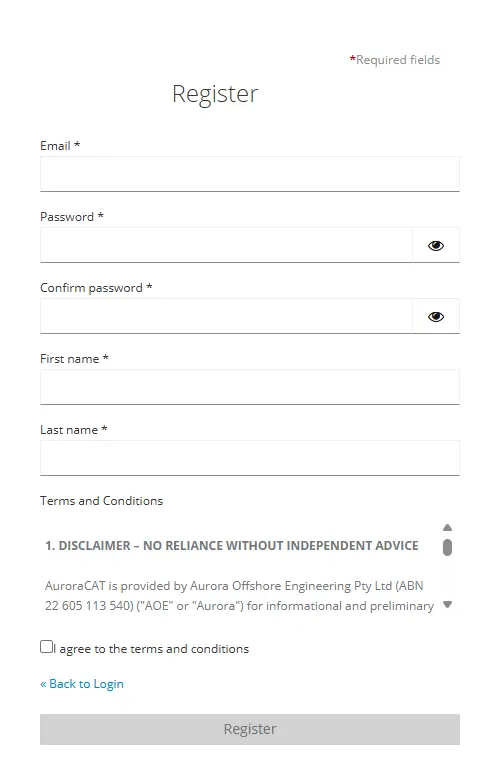

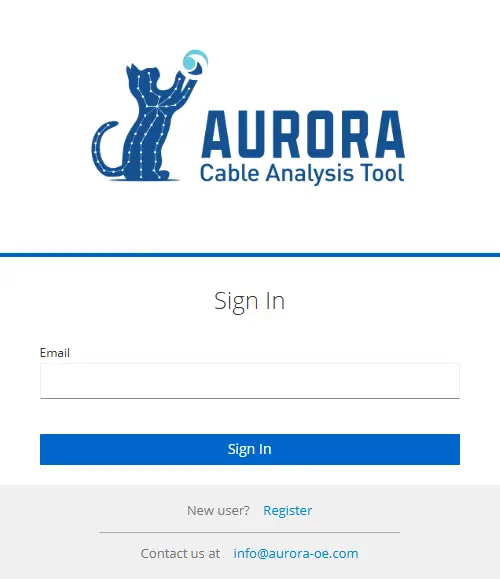

Register if you haven’t yet, otherwise log on with your email and password, or with your company Single Sign On provider
